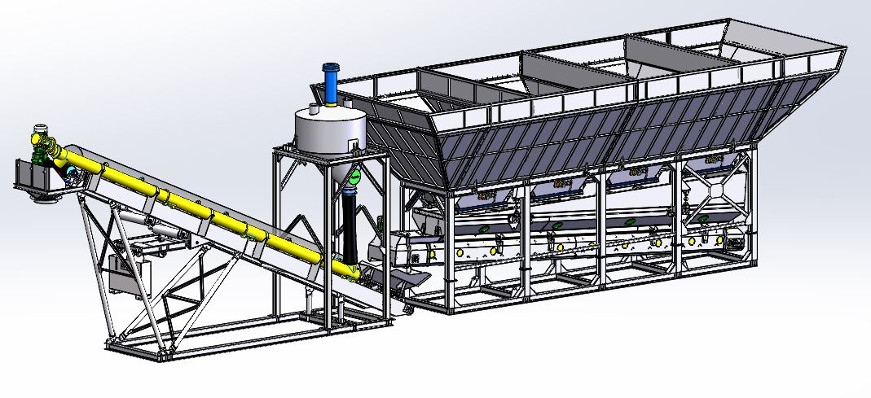

Our semi-mobile plant has been designed to limit external dimensions as much as possible, without sacrificing productivity. In a configuration where hopper and belt are assembled in line, the maximum length of the system will be less than 100 feet. Configurations where the belt is rotated by 90 degrees are possible.
Semi-Mobile Plant
DRY CONCRETE
COMPACTNESS
MOBILITY
Mounting the plant on a specially designed steel frame will negate the need for any special permits such as those required for stationary systems. This technical solution allows for the easy transportation of the plant by using a crane and trailer trucks.
PERFORMANCE
Its hourly productivity can be compared to that of a stationary plant, maintaining all the advantages of a semi-mobile system.
ECONOMY
Incomparable value for money, with a return on investment in a truly short time.
SPECS
| Capacity | UNIT OF MEASURE |
|---|---|
| PRODUCTION | Up to 60 m3/hr – 80 yd3/hr |
| AGGREGATE BINS | 4 x 20 m3 – 4 x 26 m3 yd3 |
| AGGREGATE STORAGE | up to 80 m3 – 104 yd3 |
| CEMENT STORAGE | up to 120m3 – up to 157 yd3, typical |
| TYPE | horizontal |
| ADMIXTURES | up to 2, typical |
| FEEDING SYSTEM | conveyor belt |
| MIXER TYPE | no |
| MODEL NAME | rm-smd |
